8CH DVR System with 1/3” CMOS 600TVL IR bullet camera

8CH DVR System with 1/3” CMOS 600TVL IR bullet CCTV camera

Model No.	LCD DVR Kits – E
D2808YSJ	Function Features: 1. 8CH Stand-Alone network DVR, H.264 Compression 2. Creative all-in-one design, screen panel control 270 degree revolving and 180 degree turn over 3. Integrate 10.5” digital LCD, the resolution is 1024*768 4. 8CH video input, 1CH video output, 1CH High definition VGA output(1280*1024) 5. 8CH audio input and 1CH output, 8CH alarm input and 1CH output 6. High quality video Display : PAL :704*576(D1), NTSC :720*480(D1) real time display 7. Playback resolution: PAL: 352*288(CIF), NTSC: 352*240(CIF) 8. Real time recording support: PAL: 25f/s(adjustable)NTSC: 30f/s(adjustable) 9. Recording Mode: Manual, Schedule,Alarm, Motion detection 10. Remove detection: each channel can set independent detection zones and multilevel sensitivity 11. Support 1pcs SATA hard disk up to 2TB capacity 12. 8ch Video recording at the same time 13. Live, Record, Playback, Back-up and Network at the same time 14. Backup: USB 2.0 and network backup supported 15. Support RS-485 PTZ control(speed dome camera), and remote network access 16. Support mobile phone surveillance( iPhone, blackberry, Windows Mobile, Android, Symbian) 17. Support languages: English, German, French, Spanish, Italian, Russian, Portuguese… 18. Support USB mouse and infrared remote controller operation Network Viewer: *Static, Dynamic IP and DDNS , Support Internet Explorer and special client software *Remote Live Monitoring, file searching, Backup, Playback and PTZ camera control *Remote Configuration, Firmware Upgrade and Event (Alarm, Motion) Notification

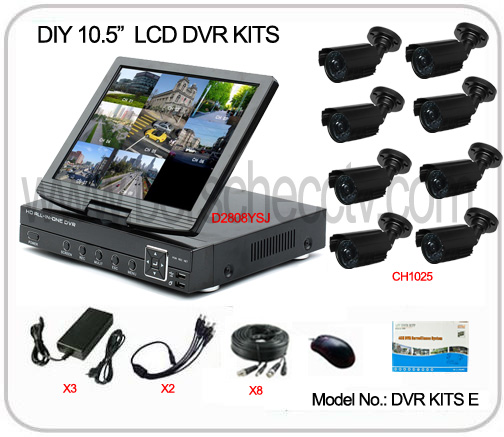

Kit List
Model DVR kits E	Basic description	Quantity
D2808YSJ	8CH H.264 Network Digital Video Recorder integrate 10.5” LCD	1pcs
CH1025	Color 1/3" CMOS IR Bullet Camera, 600TVL, 20pcs IR LED, IR range: 15M, Black color	8pcs
C-10-2	10M cctv extension cable, BNC(Video)+ DC(Power)	8pcs
12V DC 4A	DC adaptor, Input: 110-240V AC, 50-60HZ, Output: DC12V/4000mA	3pcs
5CH power splitter	5CH power distribution wire, 0.4M DC wire	2pcs
	IR Remote Controller, Mouse, Color box Package	1pcs
